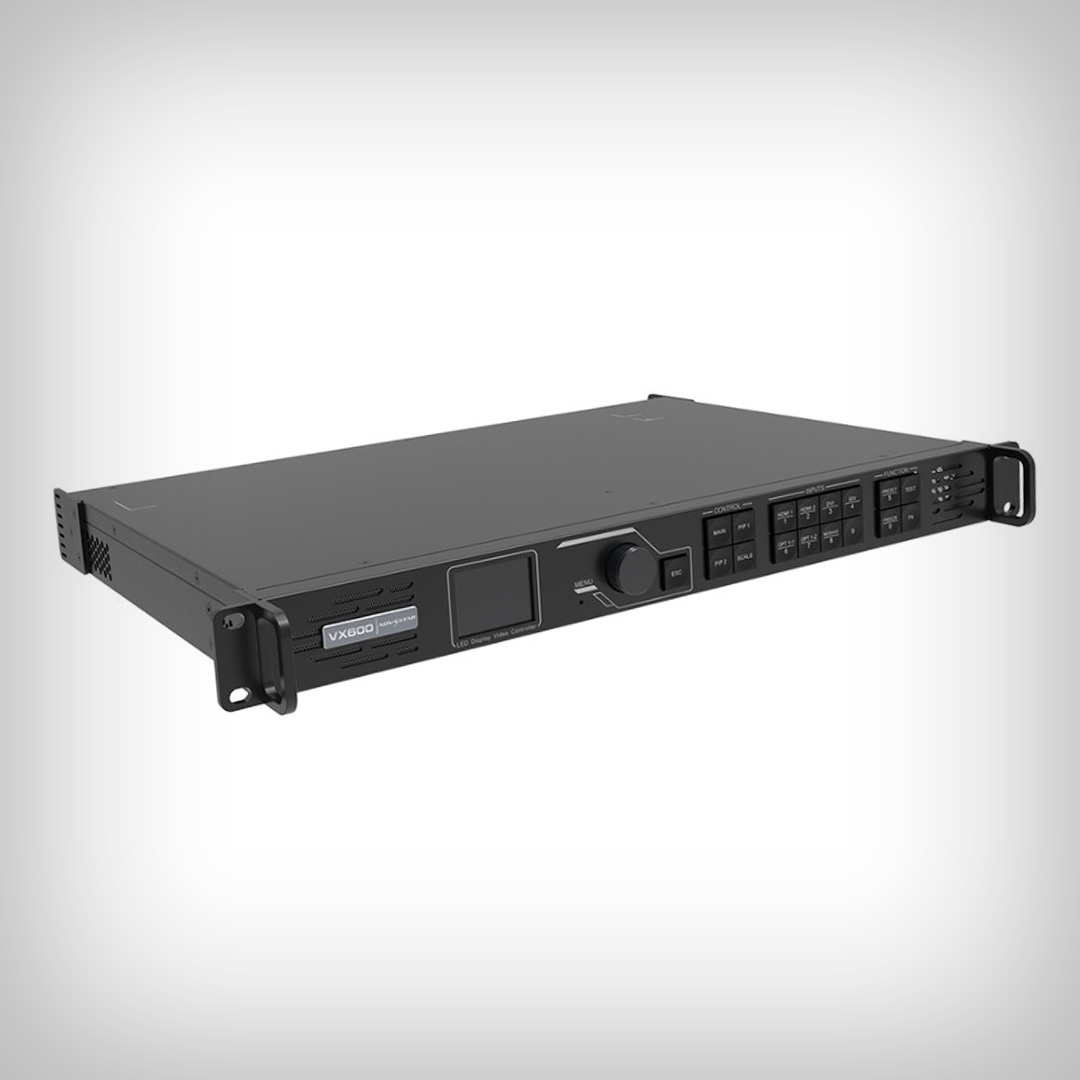

NovaStar VX600
LED Video Wall Controller and Processor
$1,650.00
NovaStar VX600: The Ultimate All-in-One LED Control Solution
Redefining Video Processing Excellence
The NovaStar VX600 represents the pinnacle of integrated control technology, seamlessly merging advanced video processing with comprehensive control capabilities in a single sophisticated unit. This cutting-edge controller features six dedicated Ethernet ports and versatile operational flexibility through its video controller, fiber converter, and Bypass modes.
Engineered for exceptional performance, the VX600 delivers impressive pixel management—handling up to 3.9 million pixels with maximum output dimensions reaching 10,240 pixels wide by 8,192 pixels high. This remarkable capacity makes the VX600 the ideal choice for installations requiring ultra-wide and ultra-high-resolution LED display solutions.
Key Features
State-of-the-art all-in-one controller
Consolidates video processing and control functionalities
Equipped with six Ethernet ports
Supports multiple operational modes: Video controller mode, Fiber converter mode, Bypass mode
Capable of driving up to 3.9 million pixels
Technical Specifications
Core System Details:
Warranty: 3 years
Control: LCD menu, intuitive interface, Ethernet, USB (A/B), Genlock IN + LOOP
Power: 100-240VAC, 28W, 1.5A
Dimensions: 2" x 13.9" x 19", 8.9 lbs
Performance Capabilities:
3.9M pixels maximum capacity
3 independent layers
Mosaic input functionality
Integrated Audio I/O
Full 3D support
Low latency processing
Output synchronization

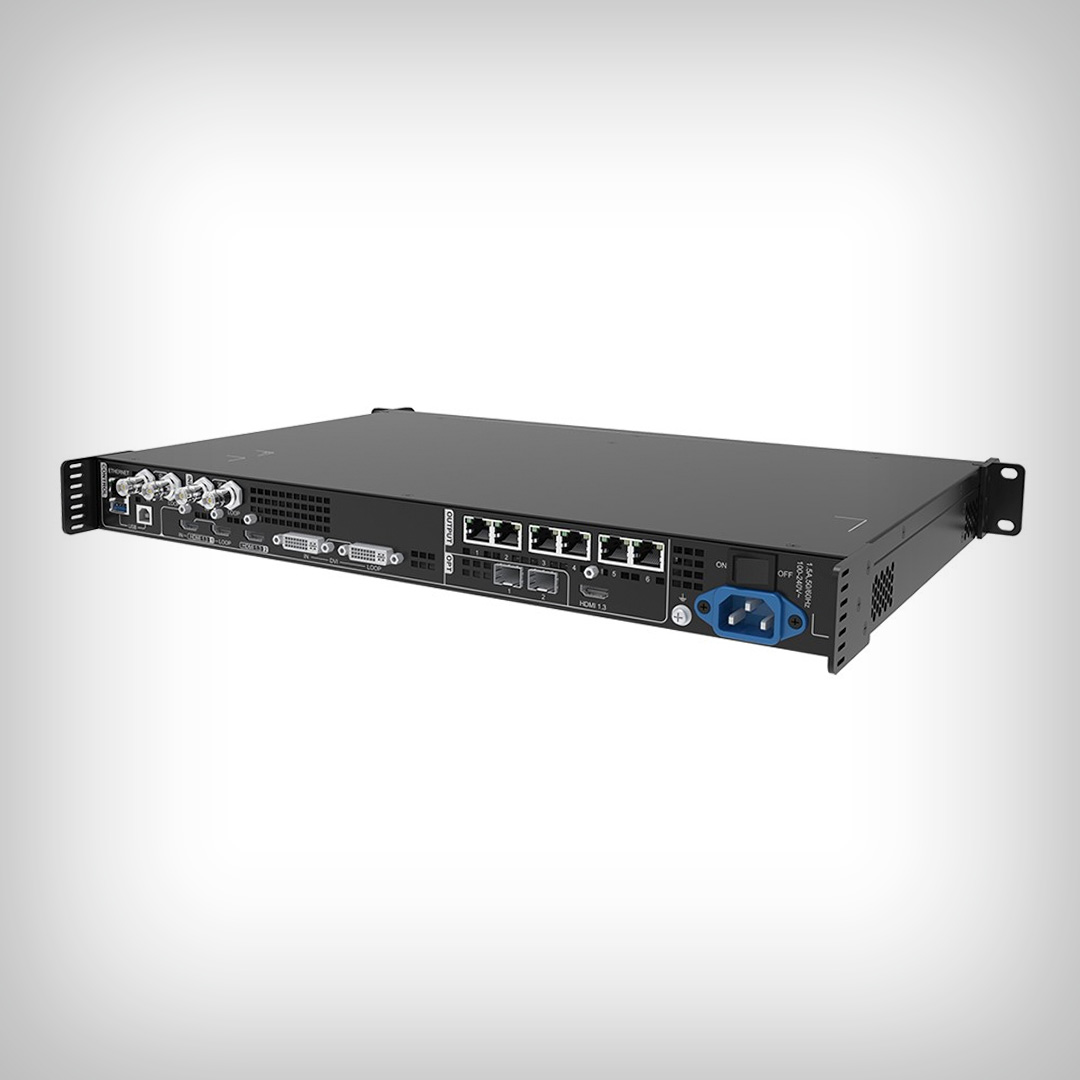

Connectivity Options:
2x HDMI 1.3 + LOOP
2x DVI (HDMI 1.3) + LOOP
1x 3G-SDI + LOOP
6x Gigabit Ethernet ports
1x 10G OPT connection
1x HDMI 1.3 (monitor)
1x RJ45 (PC)
1x USB A (cascading)
1x USB B (PC)
1x Genlock In + LOOP
