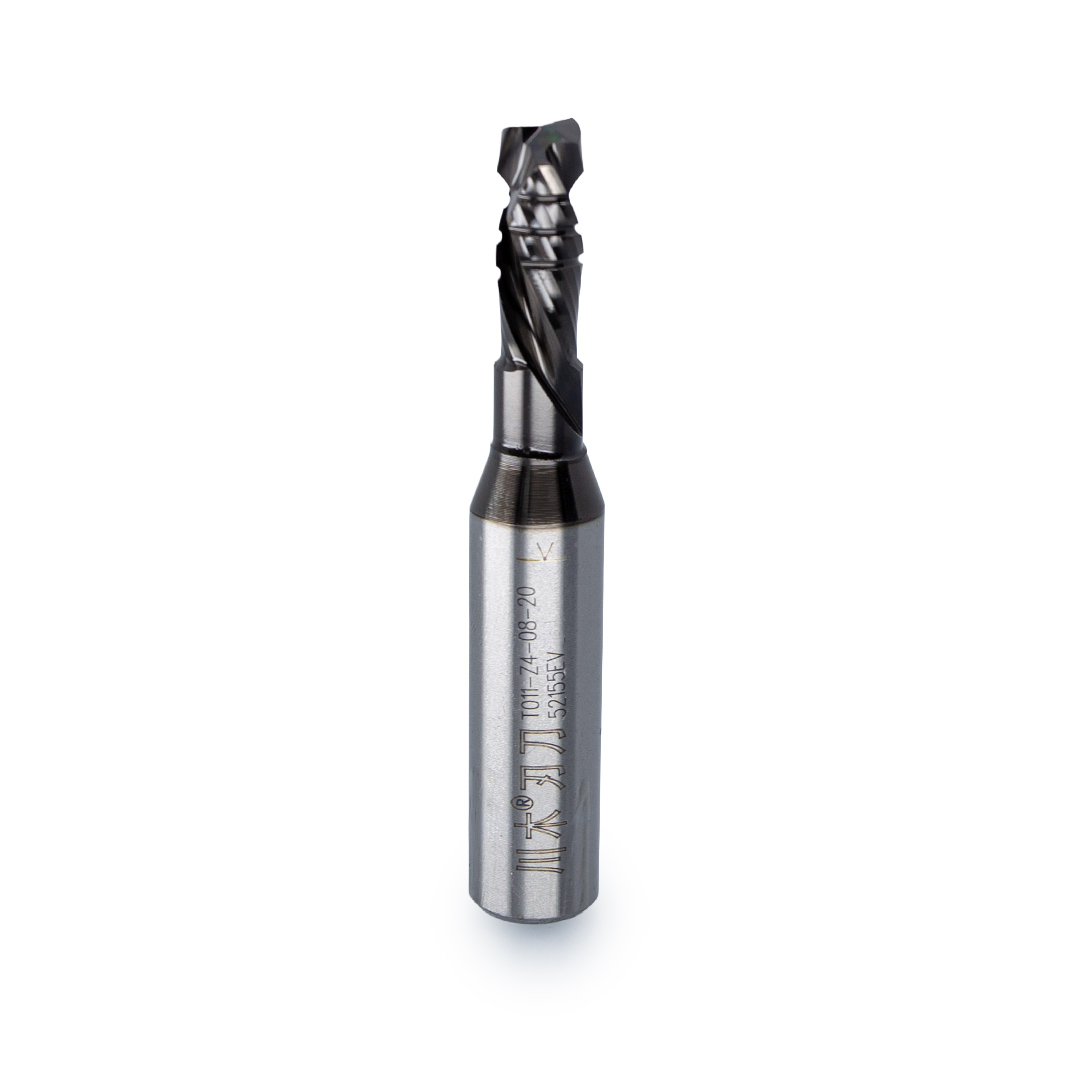

Compression Bit -1/2″ x 8mm x 20mm
Deliver flawless, chip-free top and bottom edges on double-sided laminates and plywood at a fraction of big-brand prices.
Pricing TBA
Call to order
Engineered specifically for double-sided laminates, veneered plywood, and MDF, this compression bit pulls wood fibers toward the center of the sheet to eliminate surface tear-out. You get clean, razor-sharp top and bottom edges in a single pass without paying the heavy markup of big-name tooling brands. Beyond our affordable line of premium router bits, we also carry many other hard-to-find products in the US to keep your workshop fully stocked with specialty supplies.
Frequently Asked Questions
What is the main benefit of a compression bit?
A compression bit features both upcut and downcut flutes that push chips toward the center of the cut. This prevents chipping and tear-out on both the top and bottom surfaces of double-sided materials.
What materials are best suited for this bit?
It is highly recommended for cutting double-sided laminates, melamine, veneered plywood, and MDF where a perfectly clean, finish-ready edge is required on both faces.
How deep do I need to plunge for a clean cut?
To prevent tear-out on the top surface of your material, your initial plunge must be deep enough so that the upcut portion of the flute is fully buried inside the material before routing the perimeter.
Additional information
| Bit Profile / Type | Compression (Up/Down Spiral) |
|---|---|
| Shank Size | 1/2" |
| Cutting Diameter | 8mm |
| Cut Length | 20mm |
| Material | Solid Carbide |
